Raspberry Pi OS (previously called Raspbian) の64bit 版をPi 4で動かすための情報です。
※ 検証中のため、情報は随時更新されます。内容は2020/8/2時点
検証機:Raspberry Pi 4 Model B(8GB RAM)
64bit 版OS対応状況
現時点ではbetaテスト版が公開中 www.raspberrypi.org
公式ダウンロードページで公開中のものは32bit版なので注意 www.raspberrypi.org

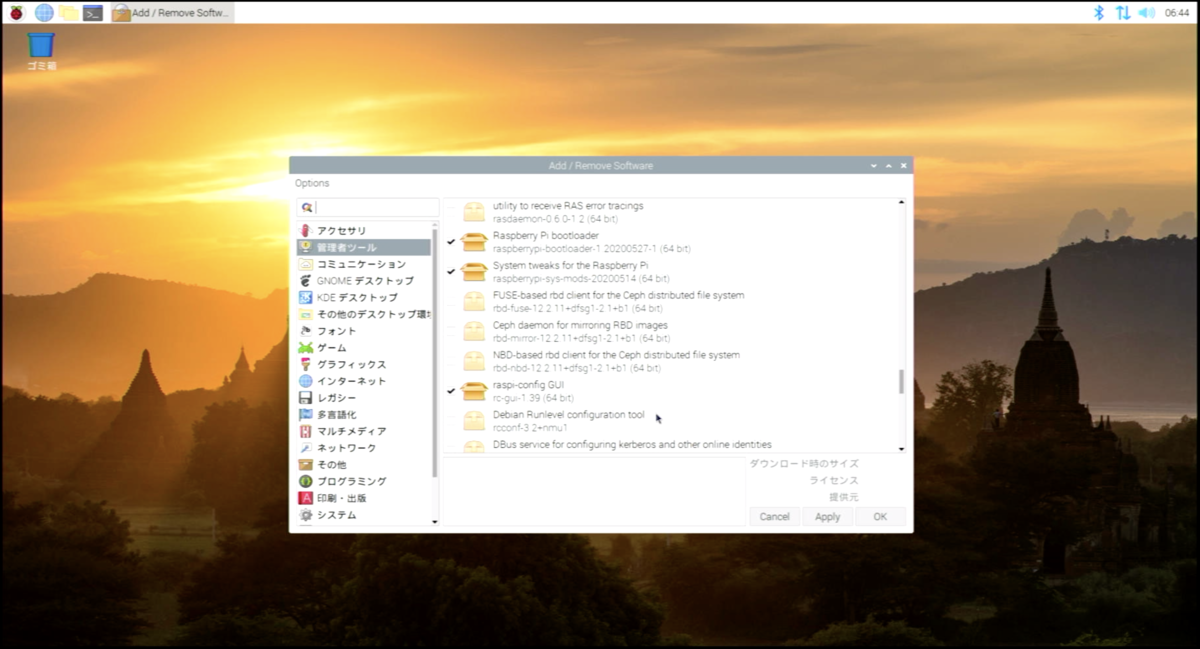

スクリーンショット
起動後各種情報
- Raspberry Pi OS 64bit パーティション
/dev/disk2 (external, physical): #: TYPE NAME SIZE IDENTIFIER 0: GUID_partition_scheme *64.0 GB disk2 1: Linux Filesystem 402.7 MB disk2s1 2: EFI EFI-SYSTEM 133.2 MB disk2s2 3: Linux Filesystem 2.4 GB disk2s4
- SSHログイン
Linux raspberrypi 5.4.42-v8+ #1319 SMP PREEMPT Wed May 20 14:18:56 BST 2020 aarch64 The programs included with the Debian GNU/Linux system are free software; the exact distribution terms for each program are described in the individual files in /usr/share/doc/*/copyright. Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent permitted by applicable law. Last login: Wed Jul 22 09:16:35 2020 from ::1 SSH is enabled and the default password for the 'pi' user has not been changed. This is a security risk - please login as the 'pi' user and type 'passwd' to set a new password.
- Bootloader Config
$ vcgencmd bootloader_config [all] BOOT_UART=0 WAKE_ON_GPIO=1 POWER_OFF_ON_HALT=0 DHCP_TIMEOUT=45000 DHCP_REQ_TIMEOUT=4000 TFTP_FILE_TIMEOUT=30000 TFTP_IP= TFTP_PREFIX=0 BOOT_ORDER=0x1 SD_BOOT_MAX_RETRIES=3 NET_BOOT_MAX_RETRIES=5 [none] FREEZE_VERSION=0
